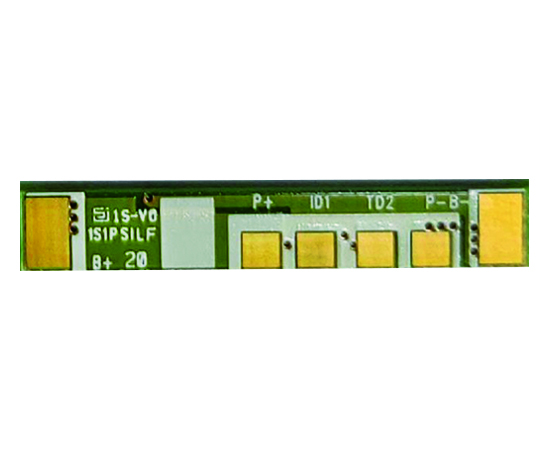

CT-1S1PSILF |
|
| Voltage Between terminals of B+ and B- | 12V |
| Over-charge detection voltage | 4.280±0.025V |
| Over-charge release voltage | 4.080±0.050V |
| Over-discharge detection voltage | 2.300±0.050V |
| Over-discharge release voltage | 2.300±0.100V |
| Over-current detection voltage | 0.130±0.015V |
| Supply current (Normal mode) | 5.5 uA(MAX) |
| Supply current (Sleep mode) | 0.2 uA(MAX) |
| Over-current protection | Discharge 2.8A~4.8A (Vgs=4V) |
| Charge 1.7A~4.3A (Vgs=4V) | |
| Internal impedance(B-~P-) | 50m ohm(max,Vgs=4V) |
